How to Reset an LG DLG2102W Dryer Thermal Cut-Off Switch

LGLG DryerModerate⏱ 15 minutes

Инструкция на английском (оригинал iFixit). Непонятные термины — в разделе «Основы → Словарь».

An LG dryer thermal cut-off switch is a safety device that helps protect the dryer from overheating. When the dryer gets too hot, the switch can shut off the heating system or stop the dryer from functioning properly causing clothes to not dry. In some cases, the switch can be reset by pressing the reset button until it clicks. This guide will explain how to safely access and reset the thermal cut-off switch on an LG dryer. Before beginning, the dryer should be turned off and unplugged to prevent electrical shock or injury.

🧰 Tools

Knife
Flashlight
Philips #2 Screwdriver

ШагиSteps

Step 1

Unplug the dryer from the wall.
If not unplugged, it could result in serious injury due to electrical hazard.

Step 2

Move dryer away from the wall.
This will give you more work space to pull tubes out of the dryer.
Ensure all wiring is removed from the work area to avoid any tripping.

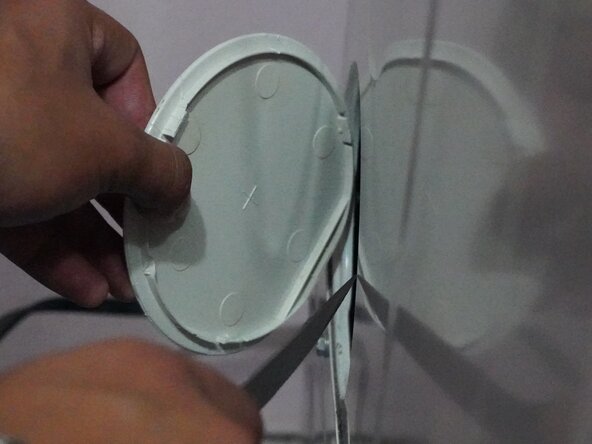

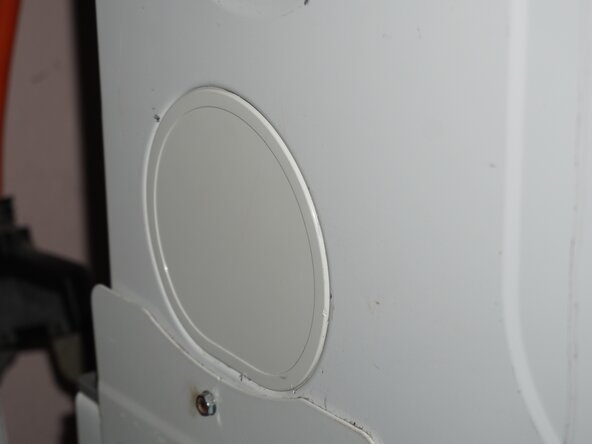

Step 3

Use a knife to remove side panel.
This should easily pop out without too much force.

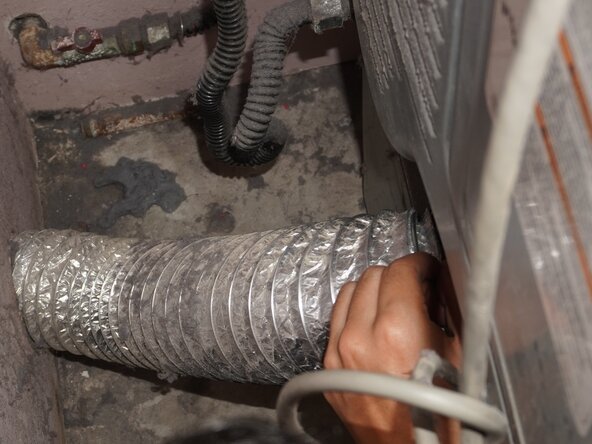

Step 4

Pull out tube that leads outside
Clamp on wire clip to loosen the vent from dryer vent. This requires a bit of force.

Step 5

Use a Philips #2 screwdriver to remove screw from back panel.
The panel will be holding the vent so unscrewing it will loosen the vent which is completely fine.

Step 6

Remove the back panel.

Step 7

Pull aluminum vent out.
Ensure there is enough space to properly remove this vent.

Step 8

Insert flashlight to see better inside dryer.
This can be done by inserting the flashlight through the side panel propped open with the knife.

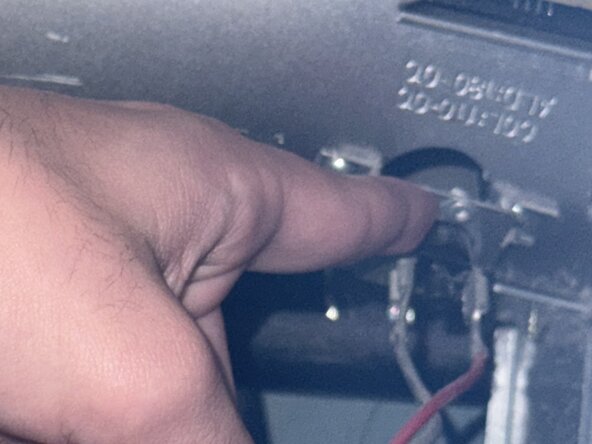

Step 9

Locate and press down until you hear a click sound.
If there is any lint or buildup in the dryer or exhaust tube, please make sure to clean and dispose of it properly to prevent any potential hazard or fire.

To reassemble your device, follow these instructions in reverse order.
