Maytag Washing Machine Suspension Rod Replacement

MaytagMaytag Washing MachineModerate⏱ 45 minutes - 1 hour

Инструкция на английском (оригинал iFixit). Непонятные термины — в разделе «Основы → Словарь».

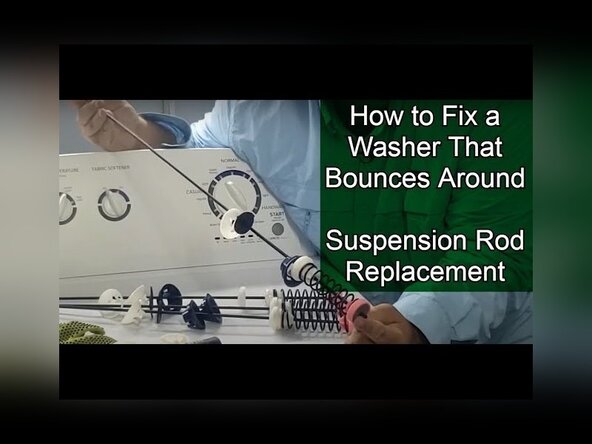

Use this guide if your top-load Maytag washer bounces, walks, or bangs during spin. Weak suspension rods let the tub move too far off center. This guide shows how to diagnose worn rods and replace them with a W10189077 / W10820048-style kit used on many Whirlpool-built top-load platforms, including Bravos, Cabrio, Amana, and Roper models.

🧰 Tools

1/4" Nut Driver
Putty Knife
Masking Tape
Shop Towels
Work Gloves

⚙️ Parts

W10820048 Whirlpool Suspension Rods

ШагиSteps

Prepare for repair

Unplug the washer from the wall outlet.
Turn off both water supply valves to reduce the chance of leaks while moving the washer.
Move the washer to a clear workspace where you can tilt it safely.
Get help if needed, since tilting a washer can make it tip and cause injury.
Place a towel on the floor in case a small amount of water drips out when the washer is tilted.

Diagnose worn suspension rods

Open the lid and press firmly down on the agitator or washplate, then let go.
Watch how quickly the tub returns to center.
Rock the tub left and right to check how much side-to-side play it has.
A good suspension returns to center immediately without continued vertical or side-to-side bouncing.
If the tub keeps bouncing or doesn’t re-center, the suspension rods are likely worn out.

Verify model and kit compatibility

Find the washer’s model number on the appliance label and write it down.
Confirm the model lists a compatible suspension rod kit before buying parts.
Use a complete W10189077 / W10820048-style kit that includes matching plastic bushings and cups.
This procedure applies to many Whirlpool-designed top-load models sold as Maytag, Whirlpool, Amana, and Roper, including Bravos and Cabrio platforms.

Gather the rod kit and tools

Gather a 1/4 inch nut driver, masking tape, and work gloves.
Use a plastic pry tool to remove and install the plastic suspension cup pieces.
Use a grippy glove because old rods are often coated with soap residue and can be hard to pull by hand.
Have a putty knife available because some models use front clips instead of rear screws to release the top.

Open the top panel

Open the lid.
If your model uses rear screws, remove the two hinge-area screws and the power-cord cover screw with a 1/4 inch nut driver.
Pull the top toward you about two inches, lift it, then push it back to unhook it from the rear bracket.
If your model uses front clips instead, release them with a putty knife rather than removing rear screws.
Work slowly if the cabinet metal is bent or damaged, since the top may bind during removal.

Tape the lid closed

Use masking tape to secure the lid to the top so it can't swing open.
Anchor the tape under the top if you need a tighter hold.
Avoid tape that leaves heavy residue on painted or finished surfaces.
Lean the top against a wall or sturdy support so it can't strike the control panel.

Unseat a suspension rod from the top housing

Put on the rubber grip glove and reach into the cabinet to grab a suspension rod.
Pull up on the suspension rod to lift it out of the plastic housing it rests in.
Rotate the rod’s plastic piece about 90 degrees on many stock Whirlpool-style rods so it can slide out of the housing.
Lower the freed rod gently back down into the cabinet so you can remove it from below.

Remove the rod from the bottom of the washer

Tilt the washer onto its side enough to reach the bottom and remove the rod from underneath.
Lay the washer fully on its side if needed, but expect some water to spill onto the floor.
Wiggle the rod if the shepherd’s hook end gets stuck.
Guide the rod through both chassis holes as you remove it.

Install the new rod through the chassis

Insert the new suspension rod from the bottom in the same path as the old rod.
Confirm the rod passes through both sets of holes before setting the washer back down.
Rest the bottom spring on the washer chassis lip before you level the washer back onto the floor.
Lower the washer onto the floor in a controlled way so the rod doesn’t shift out of position.

Hook the rod into the new cup

Use a plastic screwdriver to remove the plastic cup from the previous rod location.
Install the new plastic cup and the support piece that the shepherd's hook rests on.
Some replacement cups hold the rod at a different angle than the original cup. Match the new cup orientation to the replacement kit.
Lift up on the washer tub and carefully insert the rod’s hook into the cup.
If you can’t lift the tub enough, lay the washer on its side to reduce resistance and try again.

Replace the remaining rods

Repeat the unhooking and replacement process for the other three suspension rods.
Work one rod at a time if space is limited because it’s easier to keep parts from shifting.
Replace each rod by unhooking it at the top, pulling it out from underneath, inserting the new rod, and hooking it back into the cup.

Check the tub level and bushings

Confirm every rod has its plastic bushing and cup installed and fully seated.
Do not mix plastic bushings from different rod sets because mismatched parts can make the tub sit unlevel.
A small tilt becomes much worse during spin, so correct any mismatch before reassembly.

Reinstall the washer top

Lower the top into place and use the reverse of the release motion to hook it back onto its bracket.
Slide the top about two inches in each direction as needed to align and lock it in place.
Use a 1/4 inch nut driver to reinstall the rear screws and the power cord cover plate screw if your model uses them.
Remove the masking tape from the lid and top.

Test the repair

Press down on the agitator or washplate again and confirm the tub returns to center without bouncing.
Rock the tub side-to-side and confirm there is significantly less play than before.
Run a load to confirm the washer no longer jumps or bangs during spin.
If shaking continues, recheck that each rod is routed through both chassis holes and that every plastic cup and bushing is installed correctly.

Repair didn't go as planned? Ask our Answers community for help.
